High-precision oval gear flow meter designed for accurate measurement of various liquids. Features positive displacement technology with exceptional accuracy and reliability.
Flow Meters
UFV
Oval Gear Flow Meter
Features
| Output | Digital Pulse Output (NPN or PNP Type) |
| Output Power | 12VDC to 24VDC pulse |
| Accuracy | ±0.2% of FS |
| Line Size | 1/4" TO Up to 6" |
| Max Temperature | -20°C ~ 80°C (150°C OPTIONAL) |
| Pressure |
• 30 bar (Aluminum) • 80 bar (Stainless Steel) (UPTO 500bar optional) |
| MOC Selection |
• Body-Aluminum, Ss304, Ss316, ss316l • Gear- Aluminum, Ss304, Ss316, ss316l • Shaft- ss304, solid carbide • Seal - viton |
| Connection Type | Flange Type, Threaded Type, Tri clover Clamp |
| Cable Type | 3 core, length 1 meter to 10 meter |
| Certificate | calibration test certificate |
Product Models
Explore our product model specifications

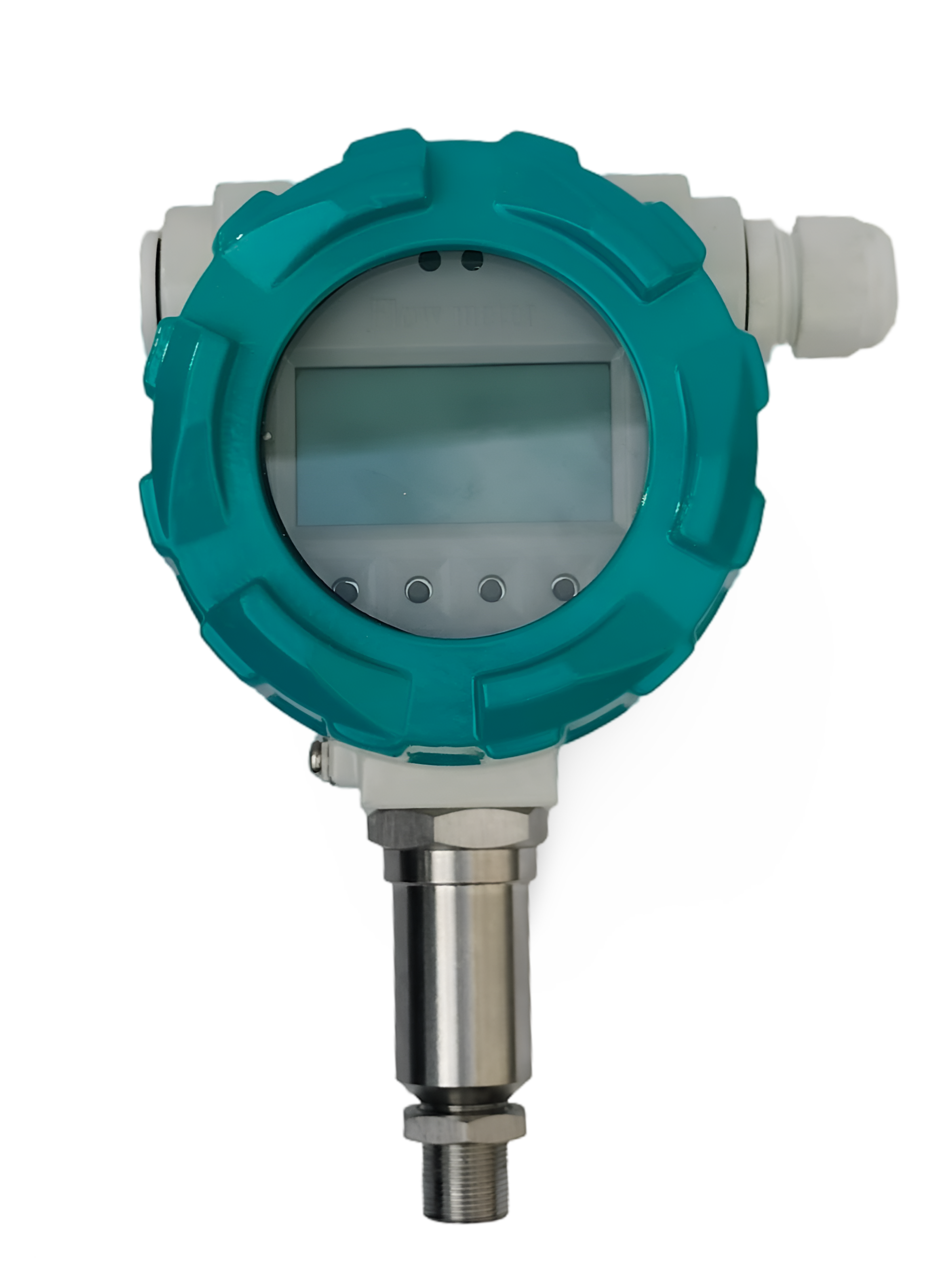

Flameproof Flow Meter
Part Code: UFD003
| Display |
• Character Display • Graphical Display |
| Output |
• Pulse, • 4To20 mA, |
| Security | Password Protected |
| Power Supply | 24 VDC |
| Ambient Temperature | 0°C to 55°C |
| Enclosure | Aluminum die cast 110 mm |

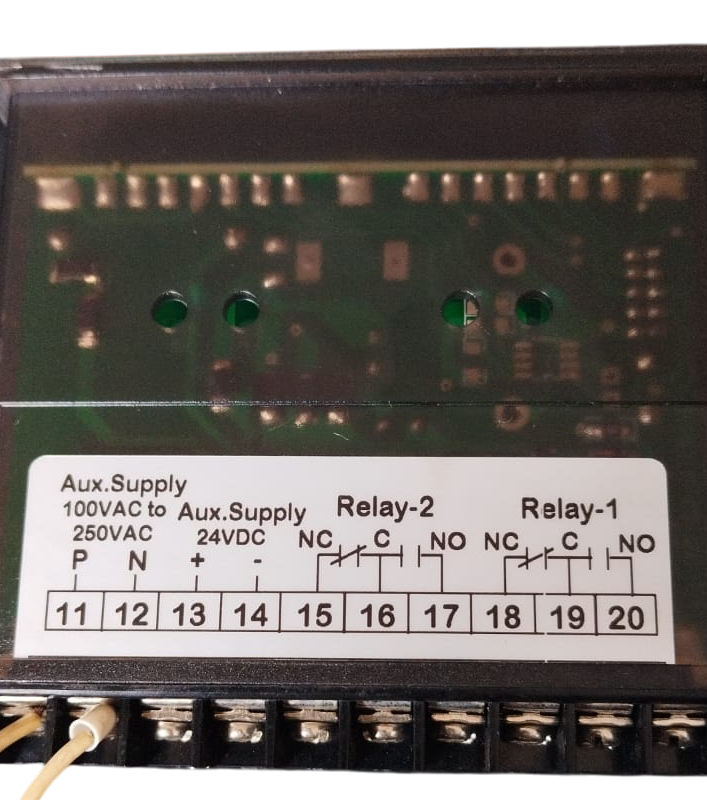

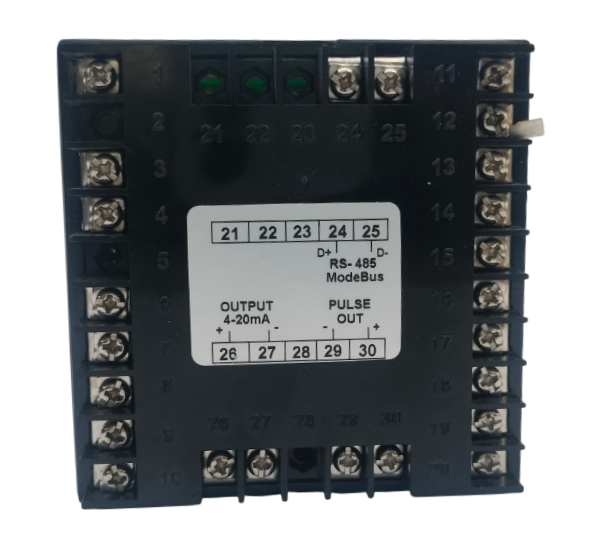

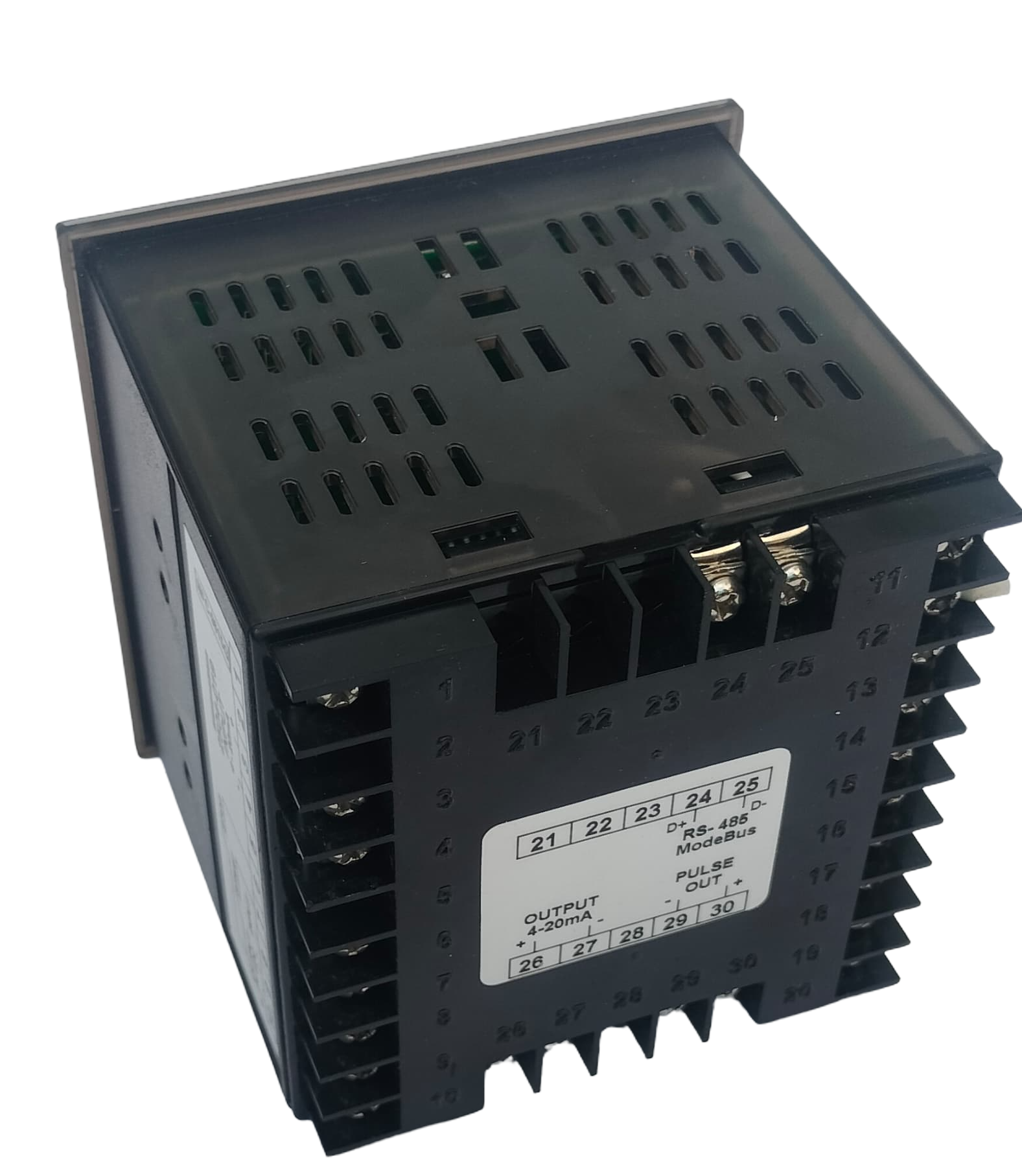

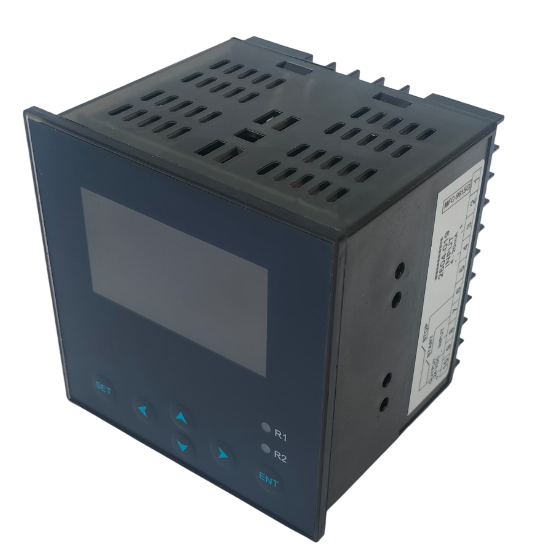

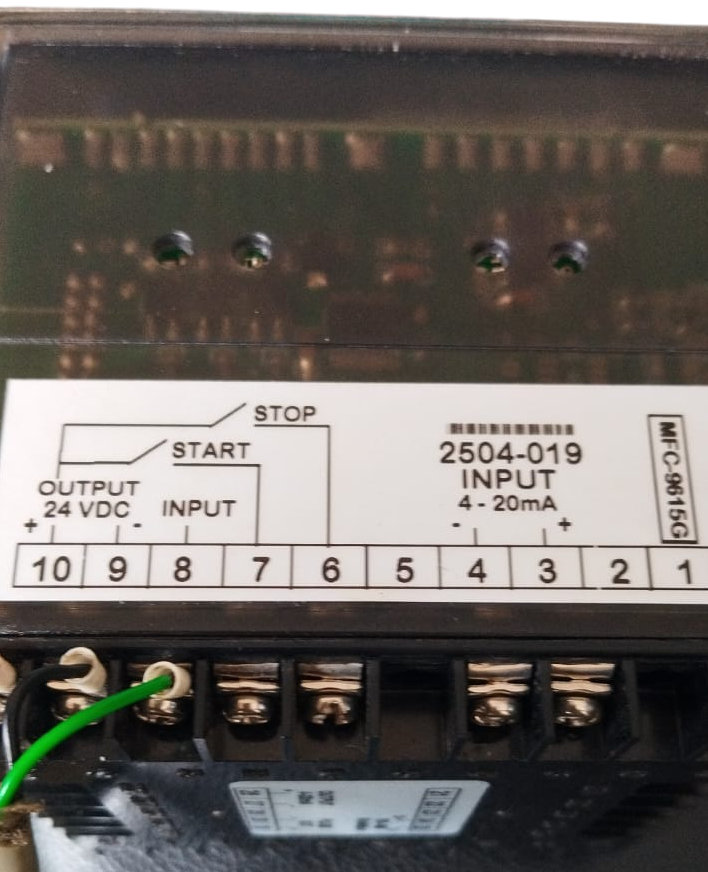

Remote Flow Totalizer R1
Part Code: UFD001
| Display |
• Graphical Display • Character Display |
| Input |
• Digital Pulse • 4to20mA |
| Output |
• Pulse, • 1 Relay/2Relay • 4To20 mA, • Rs485 Modbus |
| Security | Password Protected |
| Flameproof | No |
| Power Supply | 250VAC / 24VDC (As per Model Selection) |
| Ambient Temperature | 0°C to 55°C |
| Enclosure | ABS Plastic 96 X 96 |

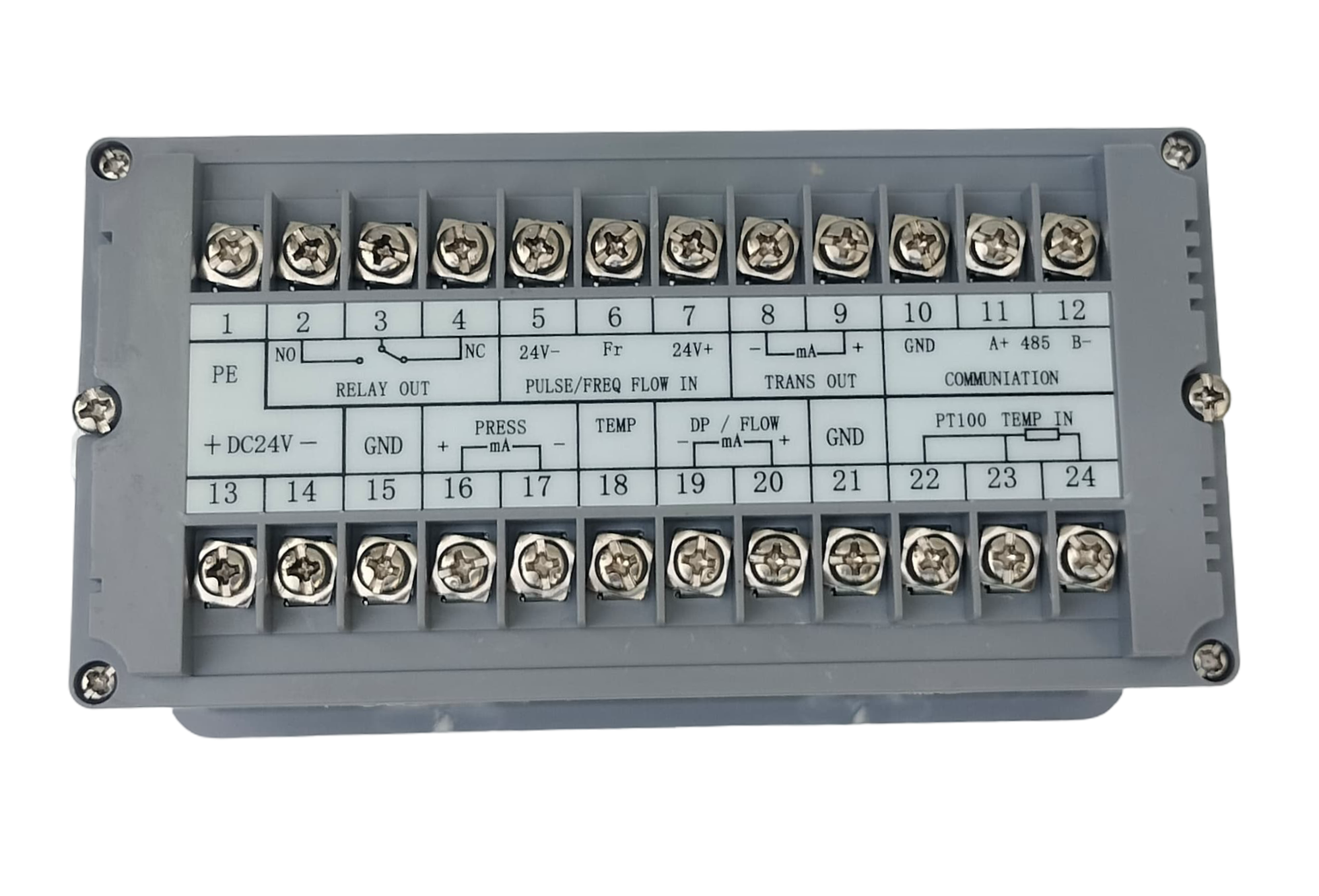

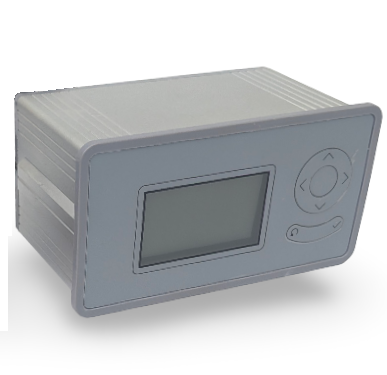

Remote Flow Totalizer R2
Part Code: UFD002
| Display |
Graphical Display Character Display |
| Input | Digital Pulse |
| Output |
• Pulse, • 1 Relay • 4To20 mA, • Rs485 Modbus |
| Security | Password Protected |
| Flameproof | No |
| Power Supply | 250VAC |
How to order (Model Selection)
Configure your product code by selecting options for each section
Product Code Generator
Unselected
Selected
UFV
-
---
-
---
-
---
-
---
-
---
-
---
1
Size :
2
Material :
3
Output Type :
4
Connection Type :
5
Cable length :
6
Display/output :
Product image for reference only
Your Generated Product Code
UFV-___-___-___-___
💡 Complete all sections above to generate your final product code
Technical Specifications
Detailed specifications for oval gear flow meter models showing line sizes, thread sizes, flow ranges and generator capacities.
| 006 | 6 mm | 1/4" BSP | 1 - 150 LPH | 0.016 – 2.5 LPM |
| 008 | 8 mm | 3/8" BSP | 15 – 500 LPH | 0.25 – 8.33 LPM |
| 012 | 12 mm | 1/2" BSP | 100 - 1500 LPH | 1.66 – 25 LPM |
| 020 | 20 mm | 3/4" BSP | 200 – 2200 LPH | 3.33 – 36.66 LPM |
| 025 | 25 mm | 1" BSP | 500 – 4000 LPH | 8.33 – 66.66 LPM |
| 025 B | 25 mm | 1" BSP | 500 - 6000 LPH | 8.33- 100 LPM |
| 040 | 40 mm | 1½" BSP | 1000 – 10000 LPH | 16.66 – 166.6 LPM |
| 050 | 50 mm | 2" BSP | 5000 - 20000 LPH | 83.33 – 333.33 LPM |
| 080 | 80 mm | 3" BSP | 10000 – 50000LPH | 166.6 - 833.33 LPM |
| 100 | 100mm | 4"BSP | 20000-75000 LPH | 333.33 – 1250 LPM |
